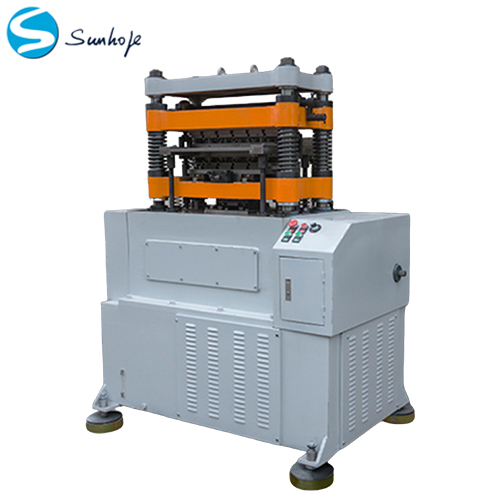

300mm Wide High-Speed Fin Forming Machine with Servo Cutting

Our fin forming machine is a specialized processing equipment designed for manufacturing heat transfer fins—key components of heat exchangers. These fins are widely used in compact heat exchangers across industries such as automotive, marine, HVAC, compressors, construction and mining machinery, aviation, military, and hydraulic oil cooling.

Compared to similar products, our machine offers the following advantages:

1. Centered Main Spindle The centered spindle reduces the number of force transmission components, minimizing power loss and improving machine accuracy.
2. High Precision Enhanced flatness of the upper and lower die tables ensures stable performance and consistency.
3. Automatic Lubrication System Reduces wear and extends machine life through efficient, automated lubrication.
4. Stepless Speed Adjustment Allows seamless speed changes without the limitations of traditional mechanical gear systems.
5. Compact Structure & Easy Operation Optimized design enables convenient mold height adjustment by a single operator.
6. High Efficiency & Low Power Consumption Improved precision and reduced wear contribute to higher efficiency. Equipped with a 3KW motor for energy savings.
7. Easy Maintenance & Low Cost Streamlined structure simplifies maintenance and reduces downtime and costs.
8. Modular Design Supports quick mold changes to produce fins of various specifications and shapes.

1. Lower drive spindle
2. Improved transmission mechanism
3. Compact and rationally designed structure
4. High precision and stability
5. Automatic lubrication with separated oil circuit collection
6. Strong adaptability to various production needs
7. Easy and fast maintenance

Sunhope’s Radiator Fin Forming Machine, manufactured in Guangdong, China, is a versatile and high-performance solution ideal for automotive radiator production and various industrial applications. Its robust construction, precise blade thickness (1.1mm), and customizable fin width make it an essential asset for enhancing manufacturing capabilities.

The BCX fin forming machine consists of:

1. Main host seat
2. Spindle
3. Upper and lower die tables

The spindle is fixed at both ends within the host seat. Guide posts and springs connect the lower and upper tables. The upper die is fixed below the upper table, while the lower die is mounted on a sliding block above the lower table.

Three cams on the spindle drive pillars for vertical reciprocating motion, enabling periodic up-and-down movement of the die tables. The central cam drives a connecting rod to enable horizontal reciprocating feeding motion via the sliding block.

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.

1. Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
2. Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
3. Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
4. Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.

1. Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
2. Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
3. Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
4. True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
