High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester

High Precision AC220V Differential Pressure Leak Tester

Lugar de origem Cantão,China
Marca Sunhope
Detalhes do produto
Modo de controle:
Automático/manual
Estação de trabalho:
1
Poder:
Eletrônico
Meio de teste:
Gás (água)
Pressão:
Máximo 10MPa
Fonte de energia:
0~380V
Termos de pagamento e envio
Quantidade de ordem mínima
1 conjunto
Preço
negociável
Detalhes da embalagem
caixa de madeira com embalagem segura marials
Tempo de entrega
50days
Termos de pagamento
L/C,T/T
Habilidade da fonte
100set/mês
Descrição do produto
High Precision AC220V Differential Pressure Leak Tester
Product Description

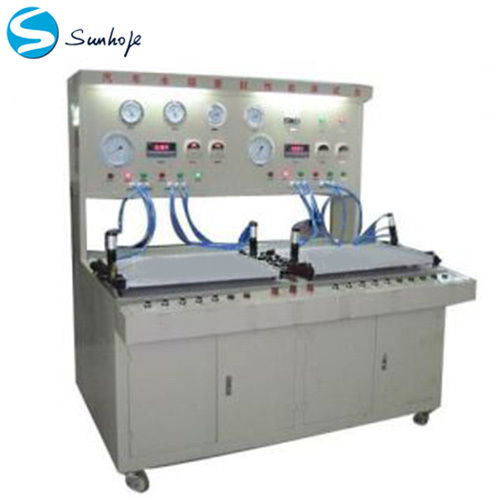

The High Precision AC220V 10MPa Radiator Leak Tester is a differential pressure leak detector engineered for online inspection. It operates by simultaneously pressurizing the test piece and a reference standard with clean, dry compressed air. After the air supply is sealed off, the instrument meticulously monitors for any pressure difference between the two. If the test piece has a leak, a measurable pressure difference occurs. By calculating and analyzing this differential pressure value, the tester accurately determines whether the item meets airtightness standards.

Advantages
  • High Precision Measurement: Utilizes a high-accuracy differential pressure sensor for exceptional measurement precision and reliable results.

  • Intelligent Operation: Features a fully automated intelligent system with a user-friendly 7-inch display for simple, intuitive control.

  • Data Management & Output: Includes a USB data export function and offers an optional printer for generating physical test reports.

Technical Parameters
ParameterSpecification
Test Pressure10MPa
Test Range±0.5Kpa, ±1Kpa, ±2Kpa
Pressure UnitsKpa, Mpa, PSI, bar
Leakage Value UnitsPa, Pa/s, mL/min
Differential Pressure Resolution1Pa
Power SupplyAC220V
Air Source RequirementClean, dry, stable compressed air
