Four-Sided Semi-Automatic Radiator Tank Crimper 0.8Mpa
  • Four-Sided Semi-Automatic Radiator Tank Crimper 0.8Mpa
  • Four-Sided Semi-Automatic Radiator Tank Crimper 0.8Mpa

Four-Sided Semi-Automatic Radiator Tank Crimper 0.8Mpa

Lugar de origem Guangdong,China
Marca Sunhope
Detalhes do produto
Opções de largura do penetrador:
20/30/40mm
Tamanho do núcleo máximo:
1000x900x56mm
Dimensões da Máquina:
1300x1200x1800mm
Tratamento de superfície:
Vertical Brilhante / Fosco
Requisito de pressão do ar:
0,8 MPa
Número de Cilindros:
6 - 8
Eficiência de Produção:
~60 segundos por unidade
Tamanho máximo da placa principal:
120 milímetros
Velocidade de corrida:
Ajustável
Termos de pagamento e envio
Quantidade de ordem mínima
1 conjunto
Preço
negociável
Detalhes da embalagem
estojo de madeira com material de embalagem em segurança
Tempo de entrega
60 DIAS
Termos de pagamento
L/C,T/T
Habilidade da fonte
10 conjuntos/mês
Descrição do produto

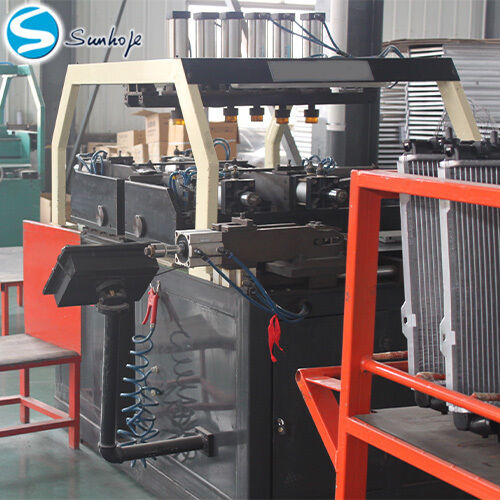

Four-Sided Semi-Automatic Radiator Tank Crimper 0.8Mpa
Product Overview

The Four-Sided Semi-Automatic Radiator Tank Crimper is a specialized pneumatic machine designed for securely attaching plastic tanks to radiator cores. Operating at 0.8Mpa, it applies simultaneous pressure from all four sides to create a consistent, leak-proof seal. This model is ideal for manufacturing and repair workshops focused on automotive and heavy-duty truck radiators, offering a balance of automated power and manual control.

Product Advantages

  • Dual-User Operation: Engineered to allow one or two workers to operate the machine concurrently, effectively doubling productivity and optimizing labor costs.

  • Fully Adjustable Settings: The stroke length and pressing force are manually adjustable to suit different material thicknesses. Operators can also select from different tab pressing plate widths (20/30/40mm) to match specific tank designs.

  • Powerful Pneumatic Drive: Equipped with 6 to 8 cylinders to ensure uniform force distribution and reliable performance throughout the crimping cycle.

  • Certified Quality Control: Each machine is built with strict quality checks at every stage and holds CE, FCC, and ROHS certifications, ensuring safety and durability.

Technical Specifications
Parameter Value Parameter Value
Brand Name SUNHOPE Warranty 12 Months
Machine Type Plastic Tank Crimper Application Automobile / Truck Radiators
Driving Mode Pneumatic Air Pressure Requirement 0.8 Mpa
Voltage / Power 220V / 50Hz, 2.5kw Number of Cylinders 6 - 8
Workstations 2 Production Efficiency ~60 seconds per unit
Indenter Width Options 20 / 30 / 40 mm Max Head Plate Size 120 mm
Max Core Size 1000 x 900 x 56 mm Running Speed Adjustable
Machine Dimensions 1300 x 1200 x 1800 mm Machine Weight 800 kg
Surface Treatment Vertical Bright / Matte Mold / Shape Customizable
OEM Service Available Programmable Non-Programmable
About SUNHOPE

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.

Core Services & Capabilities
  • Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
  • Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
  • Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
  • Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
Four-Sided Semi-Automatic Radiator Tank Crimper 0.8Mpa 0Four-Sided Semi-Automatic Radiator Tank Crimper 0.8Mpa 1
Why Partner with SUNHOPE?
  • Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
  • Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
  • Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
  • True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
